How wall thickness, multilayer architecture, and process control quietly determine whether a microcatheter design works in the body. From a precision micro extrusion team that’s been in Jaffrey, NH for over 50 years.
The Decision Behind Every Wall Thickness Number
Most thin wall micro extrusion programs start the same way. A drawing arrives with a single wall thickness number on it.
That number is one decision. Behind it sit dozens more. Material, durometer, draw ratio, layer architecture, line speed, cooling profile, polymer relaxation. The device’s eventual performance depends on every one of them. Hit the dimension and miss the behavior, and the tubing looks right on the inspection report and performs wrong in the device.
In some designs, the wall in question is less than a fifth of the diameter of a human hair. The decisions that go into specifying it are made in microns. After 50+ years of extruding precision medical tubing in Jaffrey, NH, our experience is consistent. The dimensions a designer never sees once the device is built are the ones that most often decide what’s possible.
This is a guide to specifying the part of a microcatheter that disappears.
Wall Thickness is a System, Not a Number
When a design engineer specifies a wall thickness, they are not specifying a single property. They are specifying a system that quietly governs at least five performance behaviors at the device level.
Trackability and column strength
Trackability is how willingly a catheter follows a guide wire through tortuous anatomy without prolapsing or buckling. Column strength is the ability to push the device forward without losing transmission to the tip. The two trade against each other across the wall thickness curve. A thin wall improves trackability and reduces resistance to following the path of a guide wire. A thicker wall buys column transmission and makes the device less compliant.
Kink resistance and wall uniformity
Kink resistance is whether the tubing returns to round after navigating a tight bend. The kink behavior is influenced by wall thickness, but it’s just as influenced by material durometer and how uniform the wall is around the circumference. A wall that’s thin in one quadrant and thicker in another behaves predictably right up until the moment it doesn’t.
Lumen volume and fluid dynamics
The inner space available for working device delivery, fluid, contrast, devices, or aspiration is set by the difference between outer diameter and twice the wall thickness. Every micron of wall thinning is a corresponding gain in lumen access. Fluid dynamics, in turn, depend on whether the inner geometry is consistent enough to deliver predictable flow under pressure.
Each of these behaviors lives on a different curve relative to wall thickness. The engineering question is rarely “what is the wall thickness?” It’s “what is the right balance of these five behaviors for this anatomy, this clinical task, this delivery system?” That’s a question a print can’t answer alone.
Single, Double, or Triple. When an Extra Layer Earns its Space.
The single layer extrusion is the workhorse of microcatheter design. It does most jobs well. There are specific applications, however, where an extra layer is the only thing that makes the design viable. And the ability to deliver three precise layers with a total wall thickness of less than 0.003 inches makes multilayer solutions possible, even for thin wall applications.
When a slip layer earns its space
A slip layer is typically a low friction polymer on the inner surface of the tubing. Its job is to reduce deployment force when a coil, stent, or device passes through the lumen. In neurovascular and structural heart procedures, the friction reduction a slip layer provides is sometimes the difference between a successful deployment and a stuck device.
When a bonding layer earns its space
A bonding layer enables two materials with different bonding chemistries to act as one. Without it, the design is forced into a single material compromise. The bonding layer is the answer when a design needs the inner surface property of one polymer and the outer behavior of another.
When a structural layer earns its space
A structural layer adds burst resistance or column strength without giving up the surface properties of the inner or outer layer. It’s how high pressure balloon tubing survives its inflation cycles without sacrificing trackability.
When an ultra soft outer layer earns its space
An ultra soft outer layer delivers patient comfort and atraumatic interaction without compromising the structural integrity of the tubing. In pediatric and neonatal applications, the outer layer is what allows the device to be tolerated by anatomy that wouldn’t tolerate a stiffer surface.
Each layer adds a manufacturing decision. Every additional layer multiplies the alignment, bonding, and dimensional decisions that have to land precisely.
Why Hitting the Spec isn’t the Same as Hitting the Behavior
A wall thickness specification on a print is the result of dozens of upstream decisions. The relevant ones almost never appear on the document.
Material durometer and draw ratio
Material durometer determines how the polymer behaves in a forming or flexing environment that no static dimension reveals. Draw ratio influences molecular orientation, which, along with material selection, governs hoop strength and burst behavior. Two extrusions with identical wall thickness numbers can perform entirely differently if the material and the draw weren’t selected for the application.
Pin and die geometry, line speed, cooling profile
Pin and die geometry and orientation decide whether the wall is uniform around the circumference, or whether it varies in ways that show up as inconsistent kink behavior weeks later in the device. Line speed and cooling profile influence how the polymer relaxes after extrusion. The dimension you measure at the line is not always the dimension your customer measures three weeks later, especially in materials that creep.

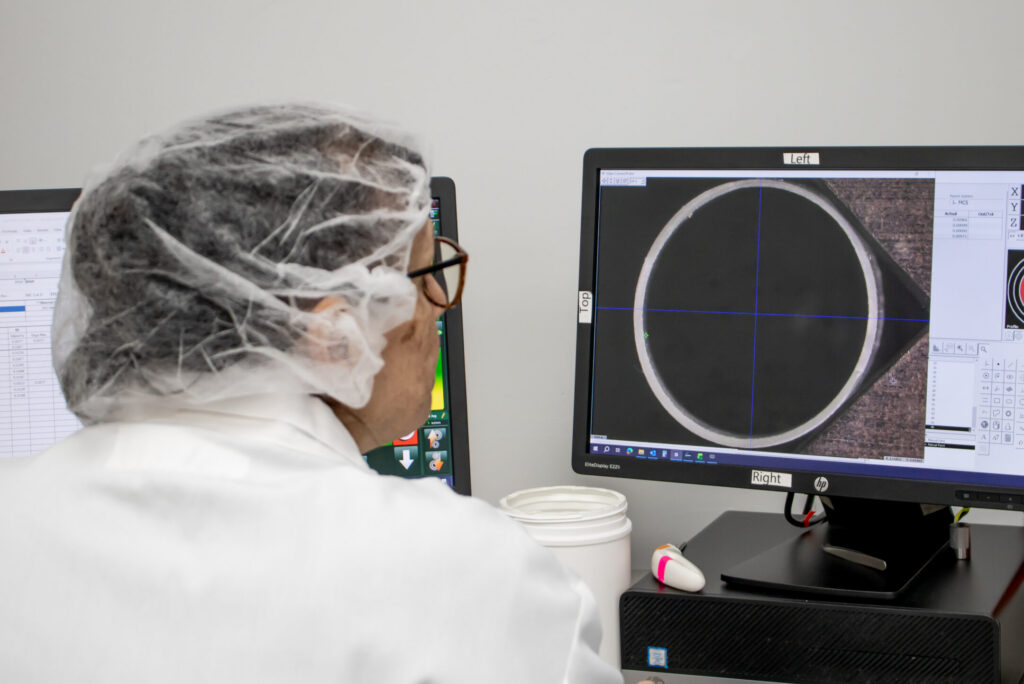

Lot to lot consistency
The variables above need to be characterized, controlled, and documented as a process. Not as a recipe. Lot to lot consistency is what separates an extrusion program that scales cleanly from one that surprises a team during validation. It’s also where most program timelines get lost.
Two extrusions can hit the same dimension on the print and behave entirely differently in the device. This is the gap between specifications and outcomes.
What to Expect from a Precision Micro Extrusion Partner
The decisions that make a wall thickness perform are made jointly. A design engineer shouldn’t expect a vendor to deliver a great extrusion in isolation any more than they would expect a clinician to perform a procedure with no anatomy. The right partnership starts at concept and stays aligned through scale.
Sample sets in the engineer’s hands early
A stepped sample set in half thousandth wall thickness increments tells a designer something a datasheet cannot. How the candidate tubing actually feels when it bends, when it’s pressurized, when it interacts with the rest of the device. We produce sample sets routinely, allowing product development engineers to target design inputs while collapsing development time.
Engineering alignment from concept to commercialization
The dimensions a design engineer specifies in development are not always the dimensions that scale. The earlier the manufacturing partner is in the conversation, the fewer surprises arise during validation. The conversation between a design engineer and an extrusion engineer in week two of a program is worth more than the conversation between two project managers in week twenty.
Quality data shipped with the lot, not requested after a problem
Every order shipped from our facility includes our MC Q-Pack, which contains inspection data, certifications, and full material traceability. The engineer who picks up the box should not have to ask for the data that proves the lot they’re holding is the lot they specified.
The Part of the Device the Design Depends On
The thin wall extrusion is the part of the device the patient will never see, the clinician will rarely think about, and the design depends on entirely.
A device’s performance lives in dimensions measured in microns, in materials selected with consequences in mind, and in layers chosen for what they enable rather than for what they list. None of that is visible once the device is assembled. All of it is critical.
Quality and precision are foundational to the work we do at Microcatheter Components. After 50+ years of developing highly specialized extrusions and staying closely aligned with the device engineers who have to make their designs work in the body, we’ve learned that the parts of a device no one ever sees are often the parts that decide what’s possible.
If you’re specifying thin wall microcatheter tubing, we’d welcome the conversation.
